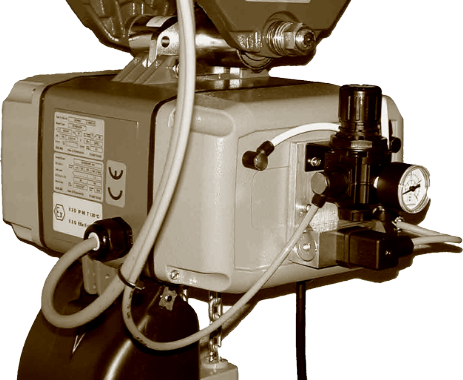

HOISTS ELECTRIC CHAIN ATEX
It is used for the lifting of loads. It can be used in a fixed point, on a crane, on a wagon bridge, connected or not to a motorized cart. The hoist is controlled by push-button.
Available in different single or three phase versions, with high gear factors to respond to important stresses. Available in the standard version, Food steel, small footprint HTPR and in special versions according to your needs, for small quantities to be defined.
Capacity: from 100 kg to 5000 kg.
ATEX executions:
Dustproof : II 3D Ex tc IIIA T130 °C Db - Gasproof : II 3D Ex tc IIIA T130 °C Db - II 3G Ex pz IIA T3 Gb
Group FEM 1BM - M3 ISO (other classes of operation on request) are available
Options-Accessories
- Radio control
- tropicalization
- Version 60 HZ
- IP 65
- Special painting
- Direct command
-sacco chain box
- Upper and lower limit switch
- Low voltage controls
- Emergency stop
- Load limiter friction
- Single phase supply voltage 115V, 230V-50Hz, three-phase 230V, 400V-50HZ. Other voltages and frequencies available on request (such as 380V-60HZ).
For electric hoists we are able to provide to jib crane with cantilever beams (flow rate up to 2000 Kg and reach from 2 to 8 m as a function of flow rate)
